SVG Structure and Transforms

ViewBox Scale

A small 120 by 80 coordinate system fills the same rendered area, showing how viewBox scales shapes and path geometry.

Program

The viewBox attribute defines the internal coordinate system. The browser scales those units to the rendered SVG size.

viewbox_scale.html
Visuals: captured from real browser rendering
<svg class="demo-svg" viewBox="0 0 120 80" role="img" aria-label="ViewBox scale">
  <rect width="120" height="80" fill="#f8fafc" />
  <rect x="10" y="10" width="44" height="28" fill="#0f766e" />
  <circle cx="86" cy="24" r="14" fill="#f59e0b" />
  <path d="M 16 62 L 52 48 L 86 62 L 108 42" fill="none" stroke="#1d4ed8" stroke-width="4" />
</svg>

  1. Define the SVG coordinate system.

    The SVG uses a compact 120 by 80 coordinate system.
    The same viewport can render any chosen internal coordinate range.

  2. Draw a rectangle in viewBox units.

    A teal rectangle appears scaled to the rendered SVG size.
    The shape uses viewBox units, not CSS pixels.

  3. Add a circle using the same coordinate system.

    An amber circle appears using the same scaled units.
    All child geometry is mapped through the viewBox.

  4. Draw a path in the compact coordinate space.

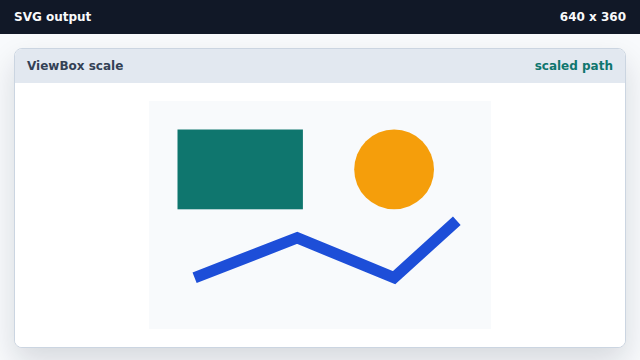

    A blue line path spans the lower part of the drawing.
    Path coordinates are scaled by the viewBox just like shapes.
viewBox viewBox defines the internal SVG coordinate system.
scaling The browser scales viewBox units into the rendered SVG box.
