Texture Checker Upload

A tiny checkerboard array is uploaded into a WebGL texture and sampled by the next draw.

Program

Textures move image data into GPU memory. This lesson assumes the shader program and textured quad from earlier setup are active, then focuses on the texture state introduced here.

texture_checker_upload.html

Visuals: generated teaching cards from captured state

state written by this keyframe

texture_checker_upload.html · full logical source

1<canvas id="gl" width="320" height="180"></canvas>
2<script>
3  const gl = document.querySelector("#gl").getContext("webgl");
4  const texture = gl.createTexture();
5  gl.bindTexture(gl.TEXTURE_2D, texture);
6  const pixels = new Uint8Array([255,255,255,255, 20,20,20,255, 20,20,20,255, 255,255,255,255]);
7  gl.texImage2D(gl.TEXTURE_2D, 0, gl.RGBA, 2, 2, 0, gl.RGBA, gl.UNSIGNED_BYTE, pixels);
8  gl.drawArrays(gl.TRIANGLES, 0, 6);
9</script>

1

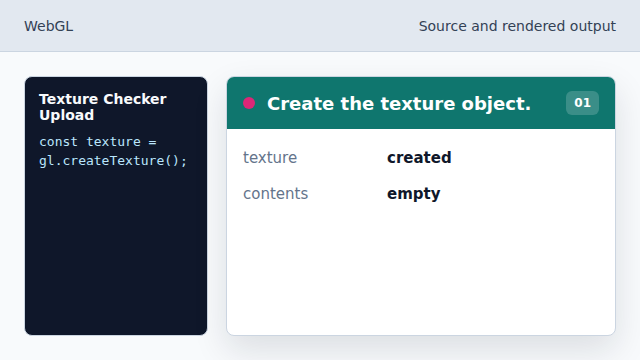

Create the texture object
kf: 1event 0kind: lifecycle
Create the texture object.
```
⋯4const texture = gl.createTexture→ created();⋯
```
The texture object is a GPU resource handle.
State after this keyframemissing → createdtexture
2

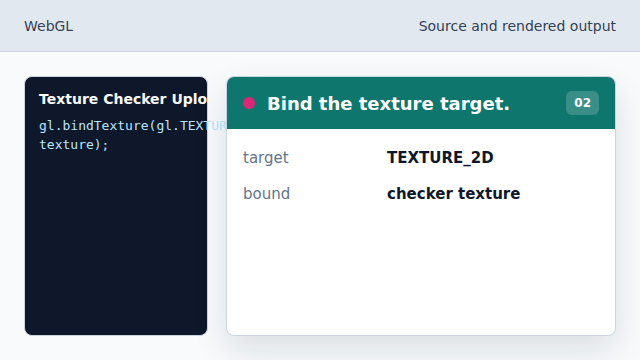

Bind the texture target
kf: 2event 1kind: lifecycle
Bind the texture target.
```
⋯5gl.bindTexture→ TEXTURE_2D(gl.TEXTURE_2D, texture);⋯
```
Texture commands now apply to this object.
State after this keyframenone → TEXTURE_2Dactive texture
3

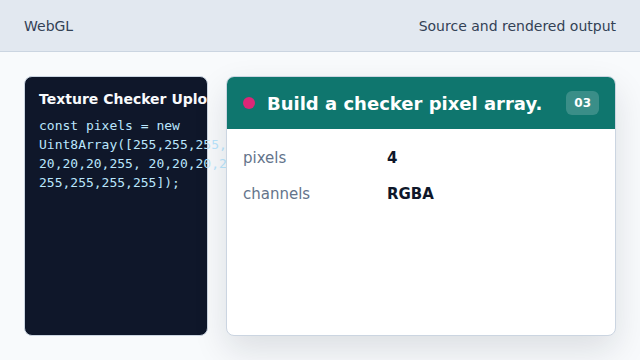

Build a checker pixel array
kf: 3event 2kind: lifecycle
Build a checker pixel array.
```
⋯6const pixels = new Uint8Array→ 2 by 2 RGBA([255,255,255,255, 20,20,20,255, 20,20,20,255, 255,255,255,255]);⋯
```
Four RGBA pixels create a tiny checkerboard.
State after this keyframemissing → 2 by 2 RGBApixel data
4

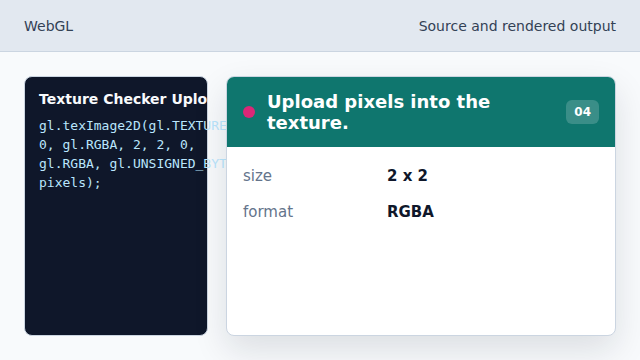

Upload pixels into the texture
kf: 4event 3kind: lifecycle
Upload pixels into the texture.
```
⋯7gl.texImage2D→ checkerboard(gl.TEXTURE_2D, 0, gl.RGBA, 2, 2, 0, gl.RGBA, gl.UNSIGNED_BYTE, pixels);⋯
```
The pixel array moves from JavaScript memory into GPU texture memory.
State after this keyframeempty → checkerboardtexture contents
5

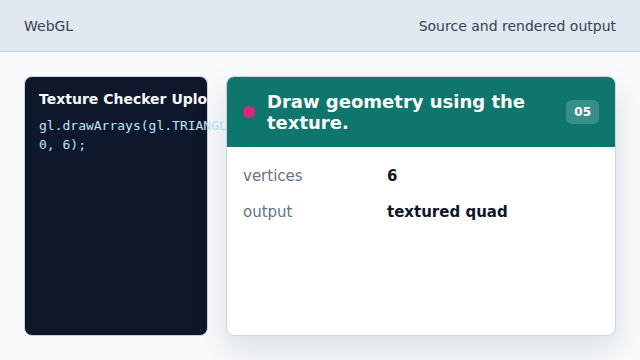

Draw geometry using the texture
kf: 5event 4kind: lifecycle
Draw geometry using the texture.
```
⋯8gl.drawArrays→ textured triangles(gl.TRIANGLES, 0, 6);⋯
```
The shader can sample the uploaded checkerboard.
State after this keyframeblank → textured trianglesframebuffer

texture A texture stores image data for shaders to sample.

active draw setup The texture upload step depends on the shader and geometry setup established earlier in the WebGL book.

texImage2D texImage2D uploads pixel data into the bound texture.
