Resize Viewport

Canvas drawing buffer size and WebGL viewport are synchronized so rendering stays sharp after layout changes.

Program

The canvas CSS size and drawing buffer size are separate. WebGL needs viewport dimensions that match the drawing buffer.

resize_viewport.html

Visuals: generated teaching cards from captured state

state written by this keyframe

resize_viewport.html · full logical source

1<canvas id="gl" style="width: 320px; height: 180px"></canvas>
2<script>
3  const canvas = document.querySelector("#gl");
4  const gl = canvas.getContext("webgl");
5  canvas.width = canvas.clientWidth * devicePixelRatio;
6  canvas.height = canvas.clientHeight * devicePixelRatio;
7  gl.viewport(0, 0, canvas.width, canvas.height);
8  gl.clear(gl.COLOR_BUFFER_BIT);
9</script>

1

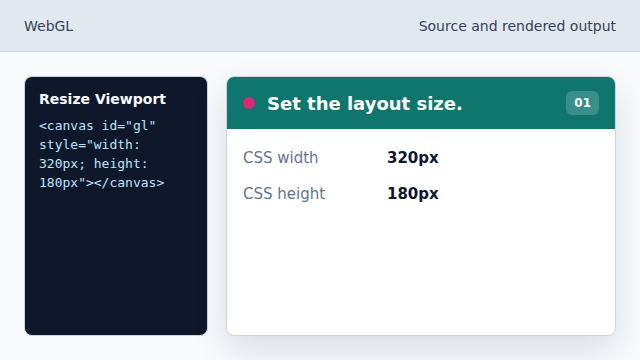

Set the layout size
kf: 1event 0kind: lifecycle
Set the layout size.
```
⋯1<canvas id="gl" style="width: 320px; height: 180px"→ 320 by 180></canvas>⋯
```
CSS controls how much space the canvas occupies on the page.
State after this keyframeauto → 320 by 180CSS size
2
Set drawing buffer width
kf: 2event 1kind: lifecycle
Set drawing buffer width.
```
⋯5canvas.width = canvas.clientWidth * devicePixelRatio→ 640;⋯
```
Multiplying by devicePixelRatio keeps the canvas sharp on dense screens.
State after this keyframe300 → 640buffer width
3

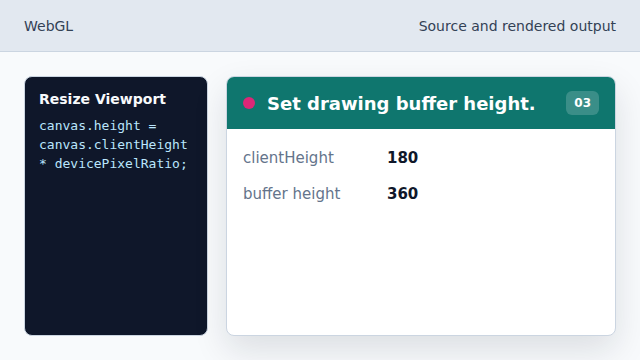

Set drawing buffer height
kf: 3event 2kind: lifecycle
Set drawing buffer height.
```
⋯6canvas.height = canvas.clientHeight * devicePixelRatio→ 360;⋯
```
The drawing buffer now matches the display density.
State after this keyframe150 → 360buffer height
4

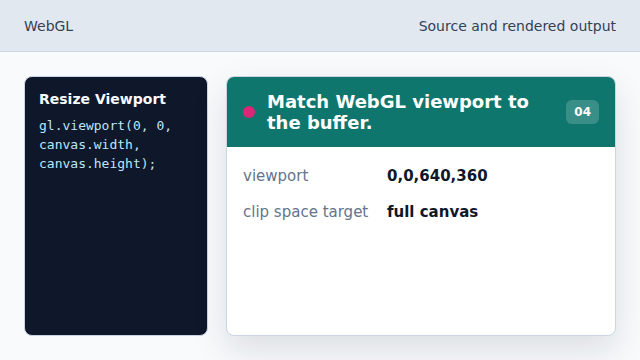

Match WebGL viewport to the buffer
kf: 4event 3kind: lifecycle
Match WebGL viewport to the buffer.
```
⋯7gl.viewport→ 640 by 360(0, 0, canvas.width, canvas.height);⋯
```
Without this call, drawing would target the wrong pixel rectangle.
State after this keyframeold size → 640 by 360viewport
5

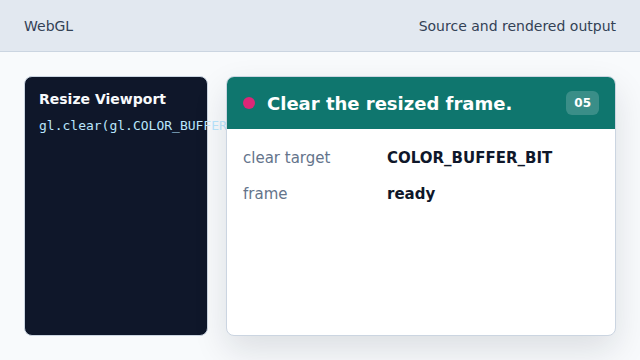

Clear the resized frame
kf: 5event 4kind: lifecycle
Clear the resized frame.
```
⋯8gl.clear→ clean frame(gl.COLOR_BUFFER_BIT);⋯
```
The first draw after resize starts from a clean buffer.
State after this keyframeold pixels → clean frameframebuffer

drawing buffer canvas.width and canvas.height set the bitmap resolution.

viewport viewport maps normalized device coordinates to drawing buffer pixels.
