Clipping, Masking, and Patterns

Mask Fade Panel

A linearGradient runs from white to black inside a mask, and an orange panel uses that mask so the panel fades to reveal the blue layer beneath.

Program

SVG masks use grayscale to control alpha. White keeps the source fully visible; black removes it; intermediate grays fade. A gradient inside a mask produces a smooth fade.

mask_fade_panel.html
Visuals: captured from real browser rendering
<svg class="demo-svg" viewBox="0 0 360 220" role="img" aria-label="Mask fade">
  <defs>
    <linearGradient id="alpha-ramp" x1="0" y1="0" x2="1" y2="0">
      <stop offset="0%" stop-color="white" />
      <stop offset="100%" stop-color="black" />
    </linearGradient>
    <mask id="fade">
      <rect width="360" height="220" fill="url(#alpha-ramp)" />
    </mask>
  </defs>
  <rect width="360" height="220" fill="#f8fafc" />
  <rect x="40" y="56" width="280" height="108" rx="14" fill="#1e40af" />
  <rect x="40" y="56" width="280" height="108" rx="14" fill="#f97316" mask="url(#fade)" />
</svg>

  1. Paint the viewport background.

    The viewport shows the pale background.
    A background gives the panels something to fade against.

  2. Define a mask using the alpha ramp.

    The viewport is unchanged while the mask is defined.
    A mask inside defs becomes alpha paint for any shape that references it.

  3. Paint the blue layer that the mask will reveal.

    A blue rounded panel covers the middle of the viewport.
    A masked layer shows through wherever the mask is opaque.

  4. Paint an orange panel that uses the fade mask.

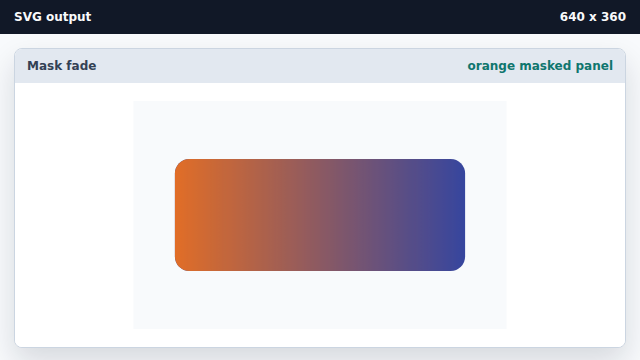

    An orange panel covers the blue on the left and fades away to the right, revealing more blue.
    mask="url(#id)" sends the source through the grayscale alpha of the mask.
mask A mask paints a shape through a grayscale alpha layer.
gradient mask A gradient inside a mask produces a smooth fade across the shape.
