Table Spans and Headers

Row Header Scope

Label Each Data Row

A status matrix uses scope on both column and row headers so every data cell has a clear heading relationship.

Program

Scope is not only for columns. A table can use scope="row" when the first cell in a row labels the data cells after it.

row_header_scope.html
Visuals: captured from real browser rendering
<table>
  <tr><th></th><th scope="col">Plan</th><th scope="col">Status</th></tr>
  <tr><th scope="row">Backup</th><td>Nightly</td><td>Ready</td></tr>
  <tr><th scope="row">Deploy</th><td>Friday</td><td>Queued</td></tr>
</table>

  1. Create the status matrix.

    An empty status matrix appears.
    The table starts before any header relationships are declared.

  2. Mark Plan and Status as column headers.

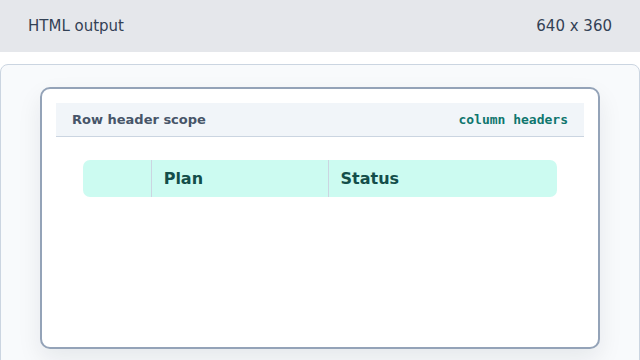

    The top row labels the Plan and Status columns.
    scope="col" connects each header to the cells below it.

  3. Mark Backup as a row header.

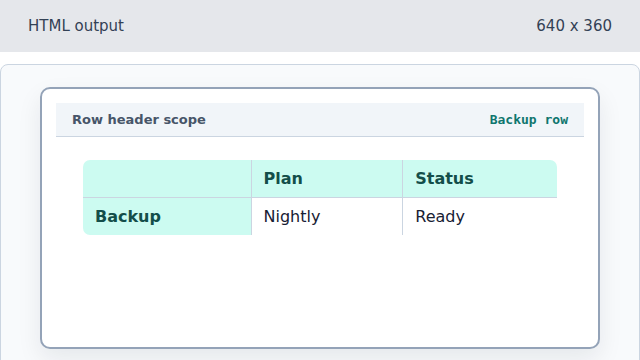

    The Backup row has a visible row header.
    scope="row" tells readers that Backup labels the cells after it.

  4. Add Backup data cells.

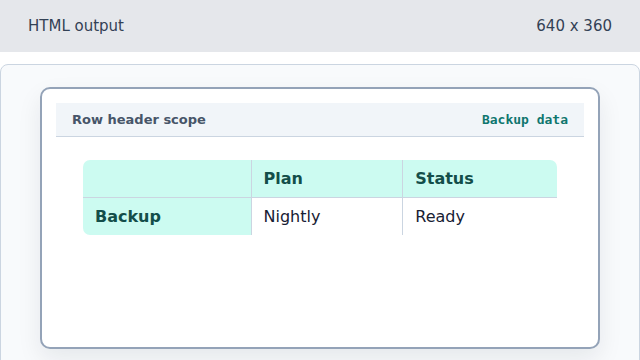

    Backup now has Nightly and Ready data cells.
    Those cells are described by both Backup and the column headers.

  5. Add the Deploy row header and data.

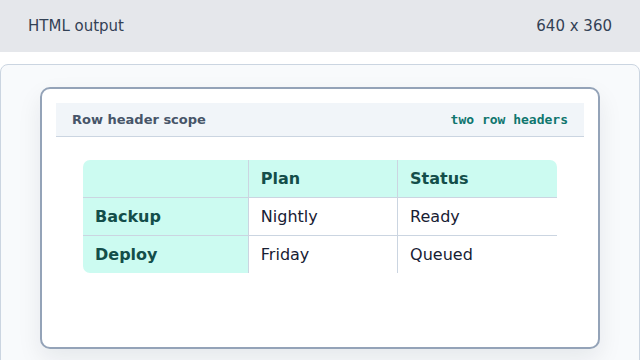

    The matrix shows Backup and Deploy rows with scoped row headers.
    Each row header labels its own row, while column headers label the vertical categories.
scope row scope="row" marks a header cell that labels the rest of its row.
header relationship Header relationships explain which labels belong to each data cell.
