Text Labels

The drawing context chooses a font and color before fillText paints a title and numeric label.

Program

Canvas text is bitmap output. Once fillText runs, the letters are pixels in the canvas rather than editable DOM nodes.

text_labels.html
Visuals: captured from real browser rendering
<canvas id="stage" width="360" height="210"></canvas>
<script>
  const ctx = stage.getContext("2d");
  ctx.font = "700 30px sans-serif";
  ctx.fillStyle = "#111827";
  ctx.fillText("Revenue", 44, 70);
  ctx.font = "600 42px sans-serif";
  ctx.fillStyle = "#0f766e";
  ctx.fillText("$42k", 44, 130);
</script>

  1. Set the title font.

    The canvas is still blank after font state changes.
    Font state affects later text drawing.

  2. Paint the title text.

    The Revenue title appears near the top left.
    fillText writes text as pixels using the current font and fill style.

  3. Paint the value label.

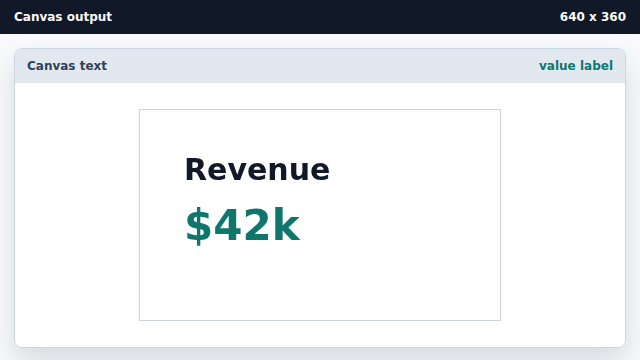

    A larger green $42k label appears below the title.
    The second fillText uses a different font and fillStyle.
font The font property controls future text drawing on the context.
fillText fillText paints text directly into the canvas bitmap.
