Interaction and Export

Export Snapshot Link

Canvas content is converted into a data URL and assigned to a download link so the drawing can be saved.

Program

toDataURL serializes the current canvas bitmap. A link with download can offer that image as a file.

export_snapshot_link.html
Visuals: captured from real browser rendering
<canvas id="chart" width="320" height="180"></canvas><a id="save" download="chart.png">Save chart</a>
<script>
  const chart = document.querySelector("#chart");
  const save = document.querySelector("#save");
  const ctx = chart.getContext("2d");
  ctx.fillStyle = "#0f766e";
  ctx.fillRect(24, 36, 180, 72);
  const url = chart.toDataURL("image/png");
  save.href = url;
</script>

  1. Prepare the save link.

    The link is configured to save an image file.
    The link is configured to save an image file.

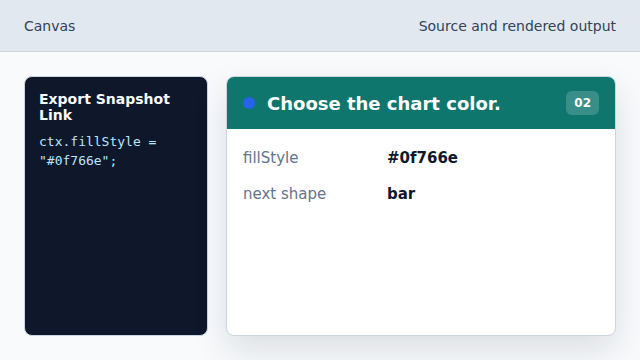

  2. Choose the chart color.

    The canvas fill style sets the next shape color.
    The canvas fill style sets the next shape color.

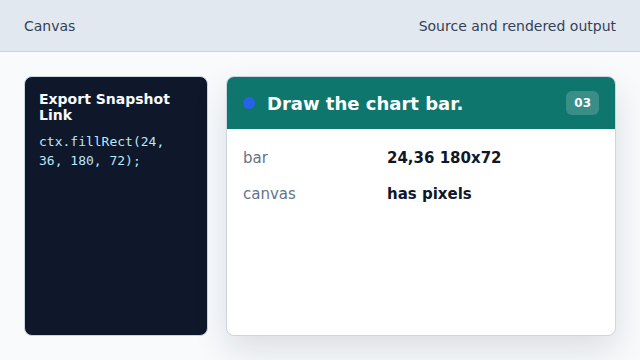

  3. Draw the chart bar.

    The rectangle becomes pixel data in the canvas.
    The rectangle becomes pixel data in the canvas.

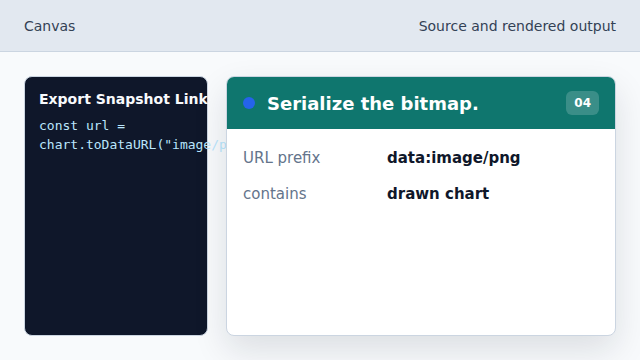

  4. Serialize the bitmap.

    toDataURL captures the current pixels as a PNG URL.
    toDataURL captures the current pixels as a PNG URL.

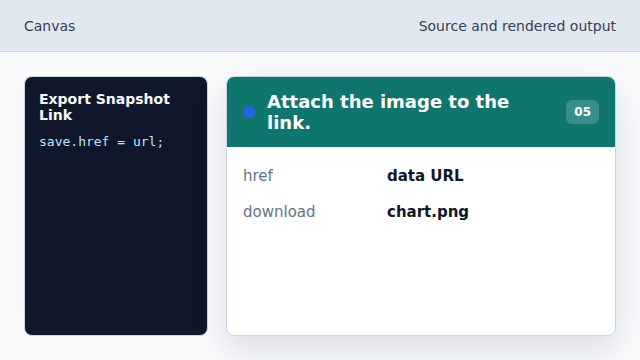

  5. Attach the image to the link.

    Clicking Save chart now downloads the generated bitmap.
    Clicking Save chart now downloads the generated bitmap.
toDataURL toDataURL converts the canvas bitmap into an encoded image URL.
download The download attribute suggests saving a link target as a file.
