Path Geometry

Arc and Pie

Two pie slices are built from arc plus closePath geometry: a teal wedge fills first, then a second wedge fills with a different color in a separate path.

Program

arc adds a circular sweep to the current path. closePath connects the cursor back to the start point so fill paints a closed wedge.

arc_and_pie.html
Visuals: captured from real browser rendering
<canvas id="stage" width="360" height="210"></canvas>
<script>
  const ctx = stage.getContext("2d");
  ctx.fillStyle = "#14b8a6";
  ctx.beginPath();
  ctx.moveTo(180, 105);
  ctx.arc(180, 105, 80, 0, Math.PI * 0.6);
  ctx.closePath();
  ctx.fill();
  ctx.fillStyle = "#f97316";
  ctx.beginPath();
  ctx.moveTo(180, 105);
  ctx.arc(180, 105, 80, Math.PI * 0.6, Math.PI * 1.1);
  ctx.closePath();
  ctx.fill();
</script>

  1. Sweep an arc for the first wedge.

    The canvas is blank while wedge geometry builds up.
    arc appends a circular sweep but does not paint until fill runs.

  2. Close the first wedge back to the center.

    The canvas is still blank; the wedge is closed but unpainted.
    closePath draws a straight segment back to the path origin.

  3. Paint the first pie slice.

    A teal wedge appears, opened to the right side of the canvas.
    fill paints the area enclosed by the current path.

  4. Sweep an arc for the second wedge.

    The canvas still shows only the teal wedge while the second arc builds.
    A new beginPath starts fresh; the second arc covers the next slice angle.

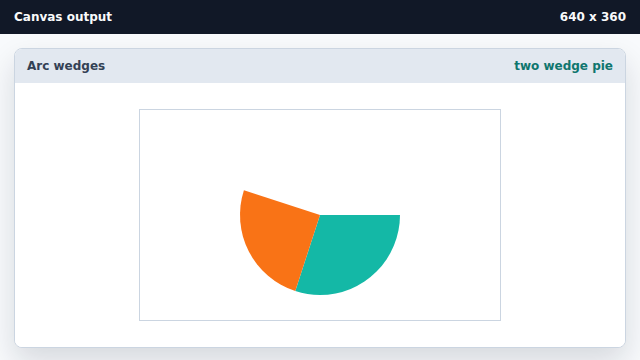

  5. Paint the second pie slice.

    An orange wedge sits next to the teal one, sharing the center.
    The closed second path fills as a separate pie slice.
arc arc adds a circular sweep to the current path between two angles.
closePath closePath connects the path cursor back to the path origin so fill produces a closed shape.
