Viewport Split

The same clip-space geometry is drawn twice by changing the viewport from the left half of the canvas to the right half.

Program

The viewport controls how clip-space coordinates map into drawing-buffer pixels. Changing it lets one canvas contain multiple rendered regions.

viewport_split.html

Visuals: generated teaching cards from captured state

state written by this keyframe

viewport_split.html · full logical source

1<canvas id="stage" width="360" height="210"></canvas>
2<script>
3  gl.viewport(0, 0, stage.width / 2, stage.height);
4  gl.drawArrays(gl.TRIANGLES, 0, 3);
5  gl.viewport(stage.width / 2, 0, stage.width / 2, stage.height);
6  gl.drawArrays(gl.TRIANGLES, 0, 3);
7</script>

1

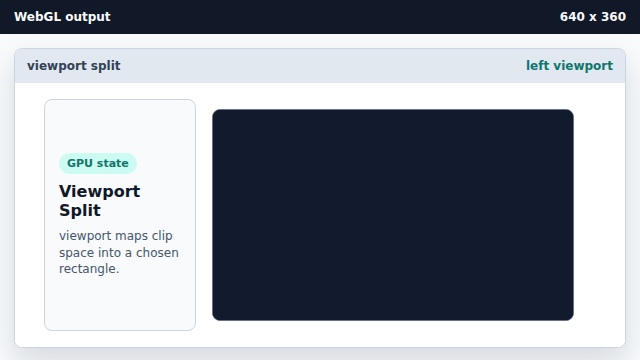

Map clip space into the left half
kf: 1event 0kind: lifecycle
Map clip space into the left half.
```
⋯3gl.viewport→ left half(0, 0, stage.width / 2, stage.height);⋯
```
A viewport remaps normalized clip coordinates into pixel coordinates.
State after this keyframefull canvas → left halfviewport
2
Draw into the left viewport
kf: 2event 1kind: lifecycle

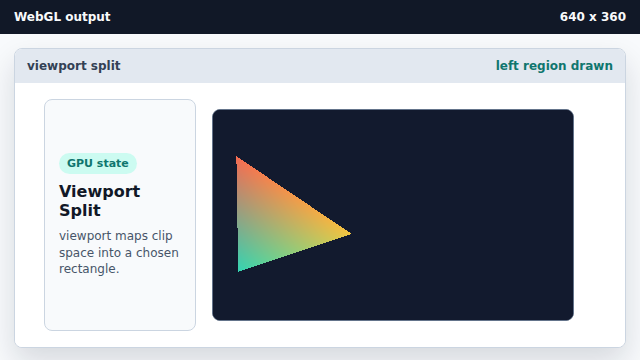

Draw into the left viewport.
```
⋯4gl.drawArrays→ left triangle(gl.TRIANGLES, 0, 3);⋯
```
The same clip-space triangle is squeezed into the current viewport rectangle.
State after this keyframeclear color → left trianglepixels
3
Move the viewport to the right half
kf: 3event 2kind: lifecycle
Move the viewport to the right half.
```
⋯5gl.viewport→ right half(stage.width / 2, 0, stage.width / 2, stage.height);⋯
```
Changing viewport state does not erase the left-side pixels.
State after this keyframeleft half → right halfviewport
4
Draw into the right viewport
kf: 4event 3kind: lifecycle

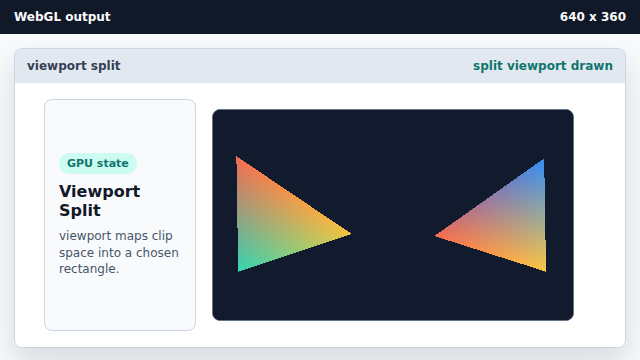

Draw into the right viewport.
```
⋯6gl.drawArrays→ split view(gl.TRIANGLES, 0, 3);⋯
```
Multiple viewport draws can build a split-screen output.
State after this keyframeleft triangle → split viewpixels

viewport The viewport maps clip-space coordinates to drawing-buffer pixels.

split view Repeated draws with different viewports can produce multiple regions in one canvas.
