Multiple Programs and Regions

Second Program Switch

Two linked programs draw two triangles with different fragment behavior after WebGL switches the active program.

Program

A WebGL context can hold many linked programs, but only one program is active for a draw call. Switching programs changes the shader code that runs next.

second_program_switch.html
Visuals: generated teaching cards from captured state
  • state written by this keyframe
second_program_switch.html · full logical source
1<canvas id="stage" width="360" height="210"></canvas>
2<script>
3  const colorProgram = linkProgram(colorVS, colorFS);
4  const solidProgram = linkProgram(positionVS, solidFS);
5  gl.useProgram(colorProgram);
6  gl.drawArrays(gl.TRIANGLES, 0, 3);
7  gl.useProgram(solidProgram);
8  gl.drawArrays(gl.TRIANGLES, 0, 3);
9</script>

  1. Link a program that reads color attributes

    kf: 1event 0kind: lifecycle

    Link a program that reads color attributes.

    3const colorProgram = linkProgram→ color program(colorVS, colorFS);
    The first shader program is linked and ready.
    Program objects package vertex and fragment shader stages.
    State after this keyframenone → color programprograms

  2. Link a second program with a solid fragment color

    kf: 2event 1kind: lifecycle

    Link a second program with a solid fragment color.

    4const solidProgram = linkProgram→ two programs(positionVS, solidFS);
    A second program is available for a later draw call.
    WebGL keeps multiple program objects resident at the same time.
    State after this keyframeone → two programsprograms

  3. Select the color program

    kf: 3event 2kind: lifecycle

    Select the color program.

    5gl.useProgram→ colorProgram(colorProgram);

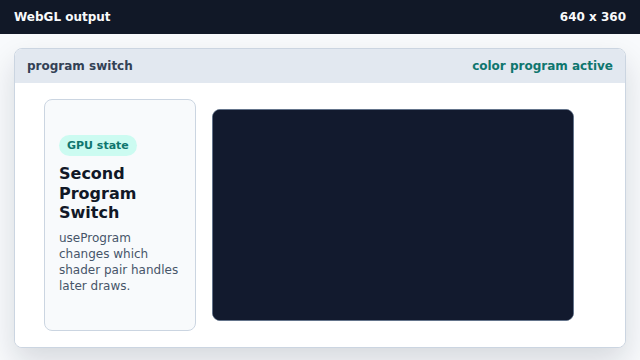

    The color program becomes current, but pixels wait for a draw call.
    useProgram changes current pipeline state.
    State after this keyframenone → colorProgramactive program

  4. Draw the first triangle with attribute colors

    kf: 4event 3kind: lifecycle

    Draw the first triangle with attribute colors.

    6gl.drawArrays→ colored triangle(gl.TRIANGLES, 0, 3);
    A colored triangle appears using the first program.
    The active program determines how vertex attributes become pixels.
    State after this keyframeclear color → colored trianglepixels

  5. Switch to the solid-color program

    kf: 5event 4kind: lifecycle

    Switch to the solid-color program.

    7gl.useProgram→ solidProgram(solidProgram);
    The next draw will use a different fragment shader.
    The earlier pixels remain; program state affects later draws.
    State after this keyframecolorProgram → solidProgramactive program

  6. Draw the second triangle with the solid program

    kf: 6event 5kind: lifecycle

    Draw the second triangle with the solid program.

    8gl.drawArrays→ two triangles(gl.TRIANGLES, 0, 3);

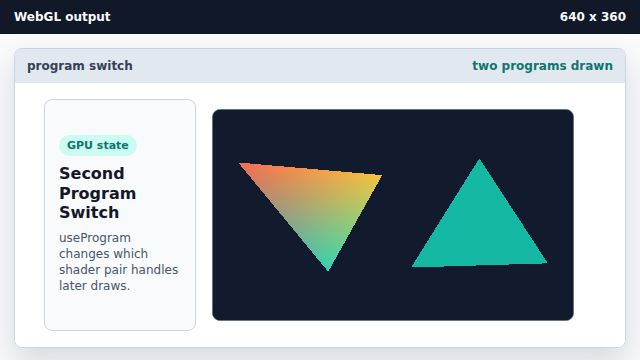

    A solid teal triangle is added beside the colored triangle.
    Two draw calls can use different linked programs in the same frame.
    State after this keyframeone triangle → two trianglespixels
program switch useProgram selects the linked shader program used by subsequent draw calls.
draw order Changing state affects future draws while earlier framebuffer pixels remain.
