Depth Test Overlap

Two overlapping triangles draw out of order, but the depth test keeps the closer triangle visible where they overlap.

Program

The depth buffer stores a depth value per pixel. With depth testing enabled, WebGL can reject fragments that are farther away.

depth_test_overlap.html

Visuals: generated teaching cards from captured state

state written by this keyframe

depth_test_overlap.html · full logical source

1<canvas id="stage" width="360" height="210"></canvas>
2<script>
3  gl.enable(gl.DEPTH_TEST);
4  gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);
5  gl.drawArrays(gl.TRIANGLES, 0, 3);
6  gl.drawArrays(gl.TRIANGLES, 3, 3);
7</script>

1
Enable depth testing
kf: 1event 0kind: lifecycle
Enable depth testing.
```
⋯3gl.enable→ enabled(gl.DEPTH_TEST);⋯
```
Depth testing compares incoming fragment depth with the stored depth buffer value.
State after this keyframedisabled → enableddepth test
2

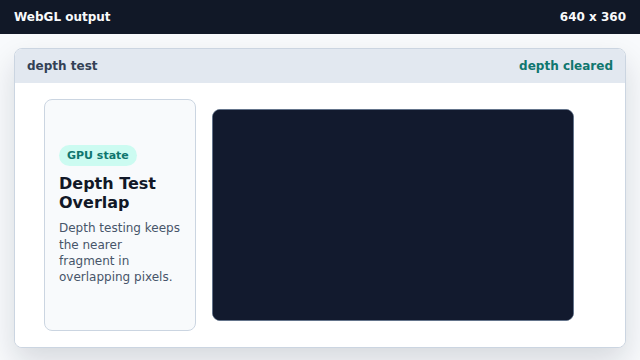

Clear color and depth buffers together
kf: 2event 1kind: lifecycle
Clear color and depth buffers together.
```
⋯4gl.clear→ 1.0 everywhere(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);⋯
```
A fresh depth buffer starts every pixel at the far depth value.
State after this keyframeold values → 1.0 everywheredepth buffer
3

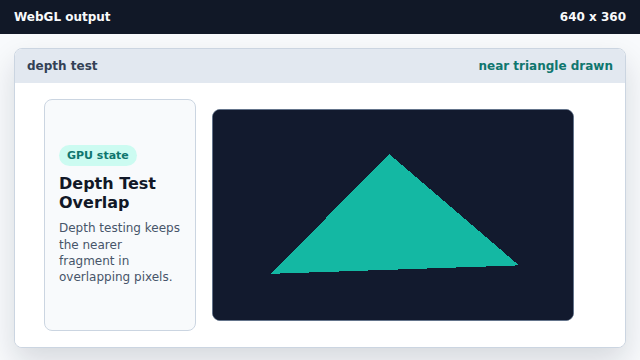

Draw the nearer teal triangle first
kf: 3event 2kind: lifecycle
Draw the nearer teal triangle first.
```
⋯5gl.drawArrays→ near triangle depth(gl.TRIANGLES, 0, 3);⋯
```
Later fragments must pass the depth comparison to replace these pixels.
State after this keyframeempty → near triangle depthdepth buffer
4

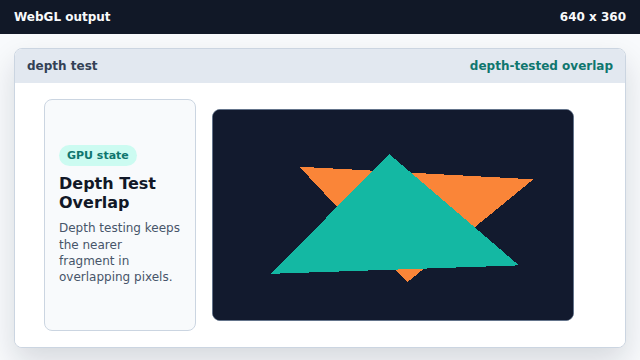

Draw the farther orange triangle second
kf: 4event 3kind: lifecycle
Draw the farther orange triangle second.
```
⋯6gl.drawArrays→ near triangle still on top(gl.TRIANGLES, 3, 3);⋯
```
Depth testing keeps closer fragments even when draw order changes.
State after this keyframenear triangle → near triangle still on toppixels

depth buffer The depth buffer stores the current depth value for each pixel.

depth test The depth test decides whether a fragment is close enough to update a pixel.
