Alpha Blend Translucent

Blending is enabled so a translucent teal triangle combines with an opaque orange triangle beneath it.

Program

Without blending, a fragment replaces the pixel color. With alpha blending, the source color mixes with the color already in the framebuffer.

alpha_blend_translucent.html

Visuals: generated teaching cards from captured state

state written by this keyframe

alpha_blend_translucent.html · full logical source

1<canvas id="stage" width="360" height="210"></canvas>
2<script>
3  gl.enable(gl.BLEND);
4  gl.blendFunc(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA);
5  gl.drawArrays(gl.TRIANGLES, 0, 3);
6  gl.drawArrays(gl.TRIANGLES, 3, 3);
7</script>

1

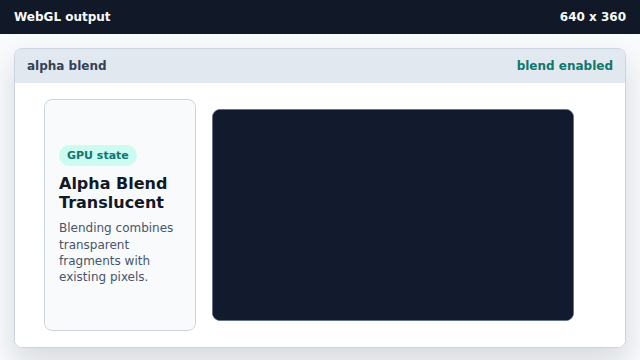

Enable framebuffer blending
kf: 1event 0kind: lifecycle
Enable framebuffer blending.
```
⋯3gl.enable→ enabled(gl.BLEND);⋯
```
Blending is controlled by global WebGL state.
State after this keyframedisabled → enabledblend state
2
Choose source-alpha blending factors
kf: 2event 1kind: lifecycle
Choose source-alpha blending factors.
```
⋯4gl.blendFunc→ src alpha over(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA);⋯
```
SRC_ALPHA and ONE_MINUS_SRC_ALPHA implement normal source-over alpha blending.
State after this keyframedefault → src alpha overblend factors
3

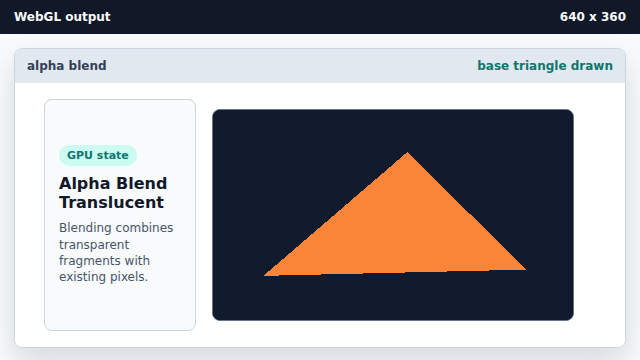

Draw the opaque base triangle
kf: 3event 2kind: lifecycle
Draw the opaque base triangle.
```
⋯5gl.drawArrays→ orange triangle(gl.TRIANGLES, 0, 3);⋯
```
Opaque drawing can establish the destination color that later blending reads.
State after this keyframeclear color → orange trianglepixels
4

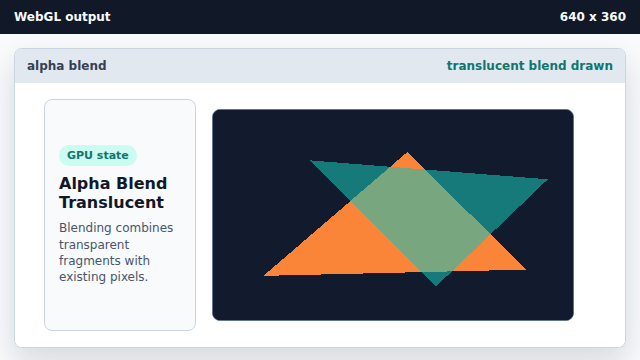

Draw a translucent triangle over it
kf: 4event 3kind: lifecycle
Draw a translucent triangle over it.
```
⋯6gl.drawArrays→ alpha blended overlap(gl.TRIANGLES, 3, 3);⋯
```
Alpha blending combines source and destination colors using the configured factors.
State after this keyframeopaque only → alpha blended overlappixels

alpha Alpha is commonly used as an opacity value for blending.

blend function blendFunc chooses how source and destination colors are weighted.
