Pipeline Basics

Clear Frame

A WebGL canvas gets a context, chooses its viewport, stores a clear color, and then paints the framebuffer.

Program

WebGL is a state machine. Some calls configure future work, while draw and clear calls actually change pixels.

clear_frame.html
Visuals: generated teaching cards from captured state
  • state written by this keyframe
clear_frame.html · full logical source
1<canvas id="stage" width="360" height="210"></canvas>
2<script>
3  const gl = stage.getContext("webgl");
4  gl.viewport(0, 0, stage.width, stage.height);
5  gl.clearColor(0.07, 0.10, 0.18, 1.0);
6  gl.clear(gl.COLOR_BUFFER_BIT);
7</script>

  1. Create a WebGL rendering context

    kf: 1event 0kind: lifecycle

    Create a WebGL rendering context.

    3const gl = stage.getContext→ WebGLRenderingContext("webgl");

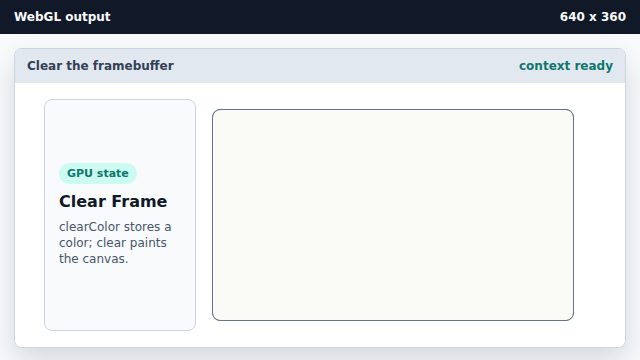

    The browser creates a WebGL context for the canvas.
    The canvas is ready for GPU-backed drawing, but pixels are unchanged.
    State after this keyframenone → WebGLRenderingContextcontext

  2. Match the viewport to the canvas size

    kf: 2event 1kind: lifecycle

    Match the viewport to the canvas size.

    4gl.viewport→ 360 x 210(0, 0, stage.width, stage.height);

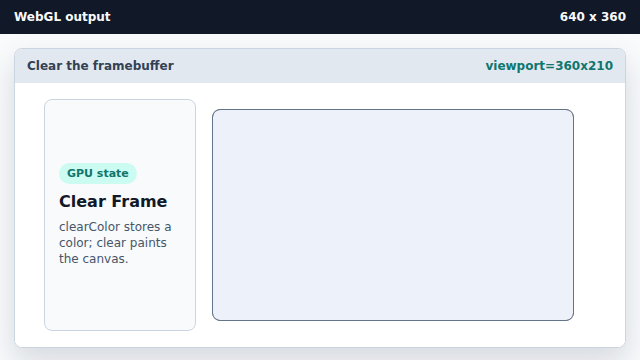

    The viewport now covers the whole drawing buffer.
    Viewport state maps clip-space coordinates into canvas pixels.
    State after this keyframedefault → 360 x 210viewport

  3. Store the color used by the next clear

    kf: 3event 2kind: lifecycle

    Store the color used by the next clear.

    5gl.clearColor→ dark blue(0.07, 0.10, 0.18, 1.0);

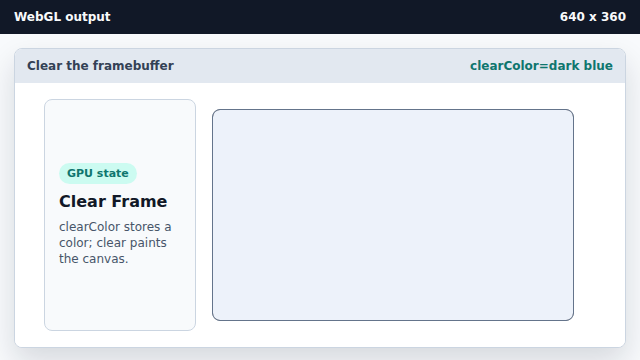

    The clear color is configured, but the old pixels remain visible.
    clearColor changes state; it does not paint by itself.
    State after this keyframeunset → dark blueclear color

  4. Paint the framebuffer with the clear color

    kf: 4event 3kind: lifecycle

    Paint the framebuffer with the clear color.

    6gl.clear→ dark blue pixels(gl.COLOR_BUFFER_BIT);

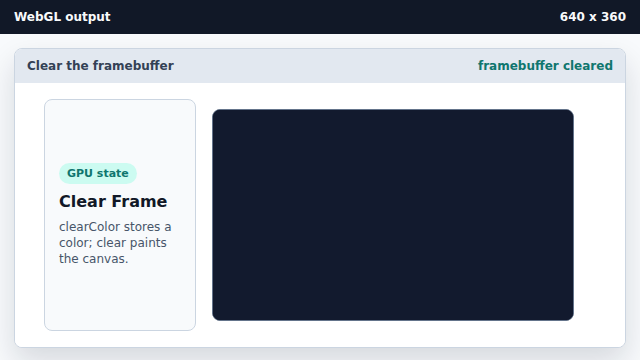

    The WebGL canvas turns into a solid dark blue frame.
    clear writes the configured color into every color-buffer pixel.
    State after this keyframelight pixels → dark blue pixelsframebuffer
WebGL context The WebGL context is the JavaScript object used to configure and draw with the GPU.
viewport The viewport maps clip-space coordinates into pixels in the drawing buffer.
framebuffer The framebuffer is the target pixel storage that clear and draw calls update.
