Drawing Calls Become Pixels

A canvas chart starts empty, gains axes, then adds each bar and label. The replay connects drawing calls to the browser-rendered pixels.

Program

Canvas drawing is immediate: each command changes pixels in the canvas bitmap. Step through the program to see when axes, bars, and text labels appear.

canvas_sales_chart.js
Visuals: captured from real browser rendering
const canvas = document.querySelector('#chart');
const ctx = canvas.getContext('2d');

ctx.clearRect(0, 0, 240, 160);
ctx.strokeStyle = '#334155';
ctx.lineWidth = 2;
ctx.font = '14px sans-serif';

ctx.beginPath();
ctx.moveTo(30, 20);
ctx.lineTo(30, 130);
ctx.lineTo(210, 130);
ctx.stroke();

ctx.fillStyle = '#2563eb';
ctx.fillRect(50, 70, 32, 60);
ctx.fillStyle = '#172033';
ctx.fillText('Q1', 56, 148);

ctx.fillStyle = '#16a34a';
ctx.fillRect(100, 30, 32, 100);
ctx.fillStyle = '#172033';
ctx.fillText('Q2', 106, 148);

ctx.fillStyle = '#f97316';
ctx.fillRect(150, 50, 32, 80);
ctx.fillStyle = '#172033';
ctx.fillText('Q3', 156, 148);

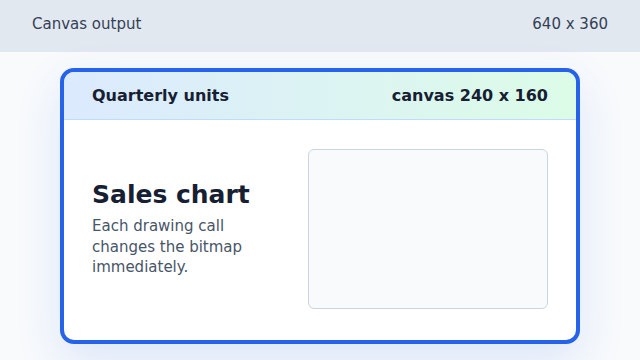

  1. Clear the chart bitmap before drawing.

    An empty canvas chart area
    The canvas starts blank after clearRect erases the bitmap.

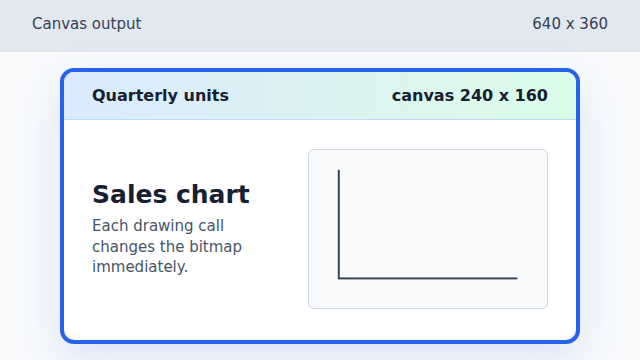

  2. Paint the axis path into pixels.

    A canvas chart showing only the x and y axes
    stroke paints the prepared path, so the axes become visible together.

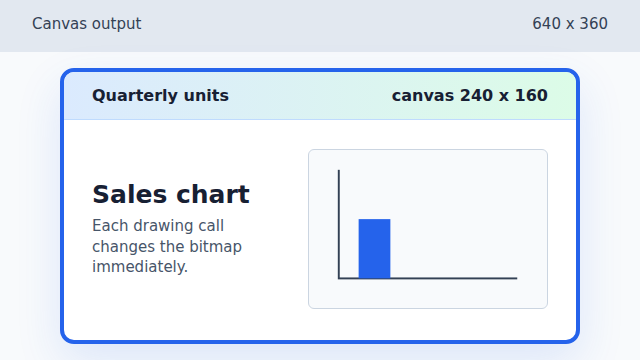

  3. Paint the Q1 rectangle.

    A canvas chart with axes and the first blue bar
    fillRect paints the Q1 bar using the current blue fillStyle.

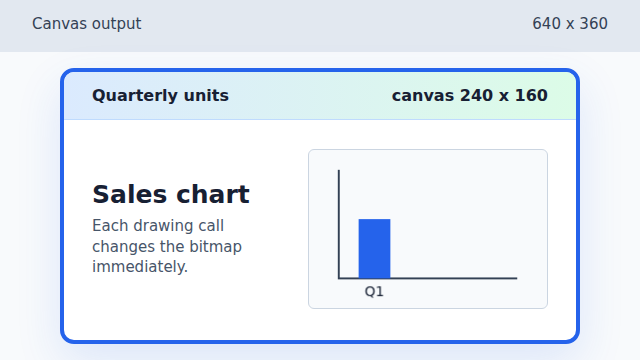

  4. Paint the Q1 label.

    A canvas chart with axes, the first bar, and Q1 label
    fillText adds the Q1 label without changing the bar pixels.

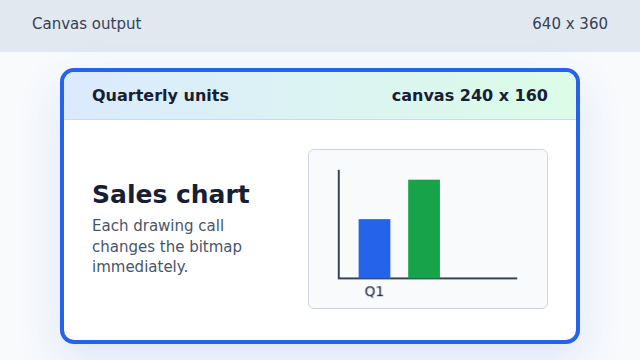

  5. Paint the taller Q2 rectangle.

    A canvas chart with Q1 and Q2 bars
    The Q2 rectangle starts higher, so it renders as the tallest bar.

  6. Paint the Q2 label.

    A canvas chart with Q1 and Q2 bars and labels
    The Q2 label is a separate text draw on top of the existing chart.

  7. Paint the Q3 rectangle.

    A canvas chart with three colored bars and two labels
    The Q3 rectangle fills the remaining bar position.

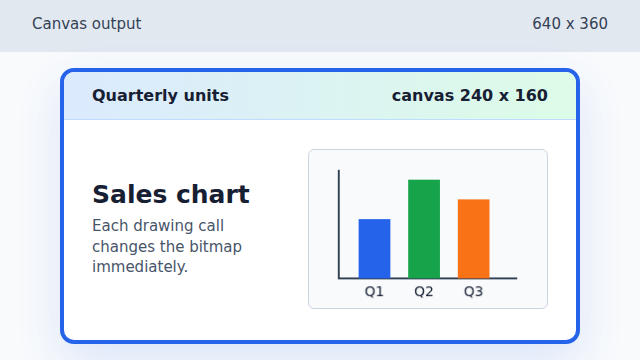

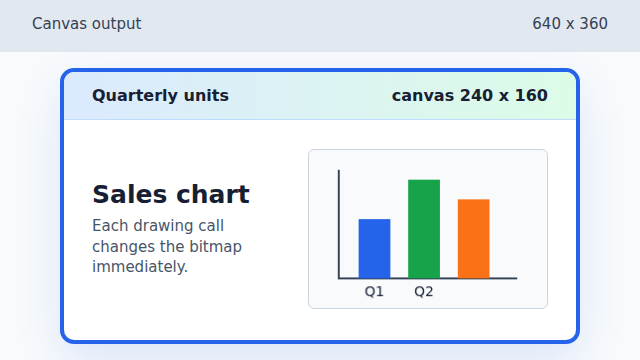

  8. Paint the final Q3 label.

    A complete canvas chart with axes, three bars, and Q1 Q2 Q3 labels
    The final label completes the chart bitmap.
canvas context A canvas context is the drawing object. Its state, such as `fillStyle` or `font`, affects later drawing calls.
fill rectangle `fillRect(x, y, width, height)` paints a filled rectangle into the canvas bitmap.
drawing order Later drawing calls appear on top of earlier pixels, so order is part of the rendered result.
