Csv Tables

CSV Status Table

Text Data Becomes Rows

A CSV string becomes an HTML table. The replay connects parsing steps to the browser-rendered header and rows.

Program

The source splits CSV text into arrays, then writes table headers and rows into the DOM. Watch how data becomes browser-rendered cells.

csv_status_table.js
Visuals: captured from real browser rendering
const csv = `name,role,status
Ada,admin,active
Lin,editor,paused
Mia,viewer,active`;

const lines = csv.trim().split('\n');
const headers = lines[0].split(',');
const rows = lines.slice(1).map((line) => line.split(','));

const table = document.querySelector('#team');
const headerRow = table.createTHead().insertRow();
headers.forEach((header) => {
  const th = document.createElement('th');
  th.textContent = header;
  headerRow.appendChild(th);
});

const tbody = table.createTBody();
rows.forEach((row) => {
  const tr = tbody.insertRow();
  row.forEach((value) => {
    const td = tr.insertCell();
    td.textContent = value;
  });
  tr.dataset.status = row[2];
});

  1. Store the CSV text.

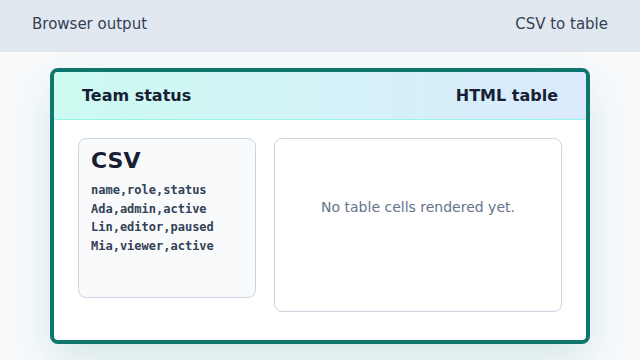

    A browser card showing CSV text and an empty table area
    The CSV text exists, but no table cells have been rendered yet.

  2. Append header cells for name, role, and status.

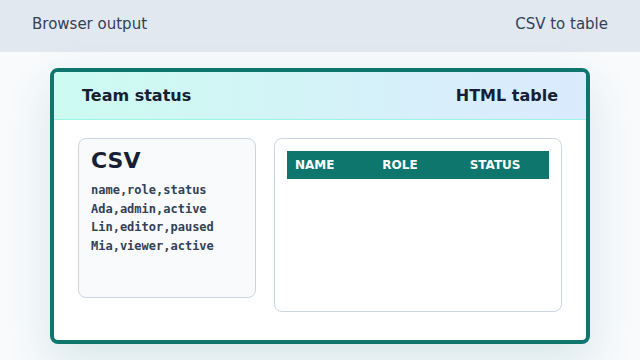

    A browser table showing only the header row
    The header loop turns the first CSV line into table header cells.

  3. Render Ada as the first data row.

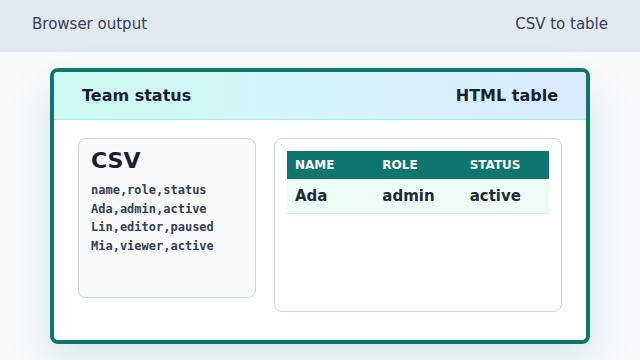

    A browser table showing the header and Ada row
    The first record becomes a highlighted active row.

  4. Render Lin as the second data row.

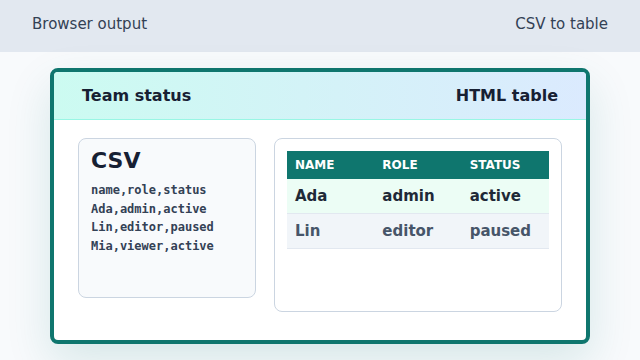

    A browser table showing Ada and Lin rows
    The paused status is stored as a data attribute and styled differently.

  5. Render Mia as the final data row.

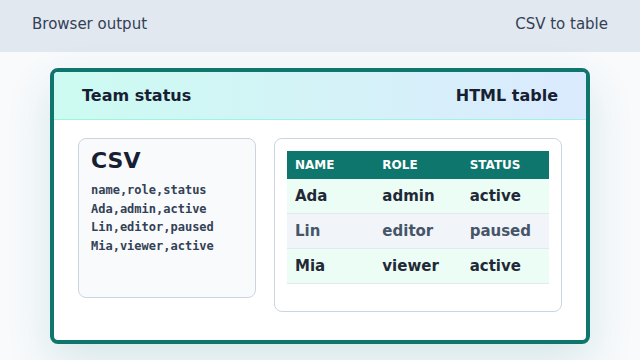

    A complete browser table with three CSV rows
    All three CSV records are now visible as table rows.
CSV CSV stores rows as lines and fields as comma-separated text.
table row An HTML table row groups related cells so the browser can render the data in columns.
data attribute A data attribute stores extra state on an element. CSS can use it to style matching rows.
